  • Heighten pull-out basket with soft-closing KPTJ012 | tall unit basket
  • Heighten pull-out basket with soft-closing KPTJ012 | tall unit basket
  • Heighten pull-out basket with soft-closing KPTJ012 | tall unit basket
  • Heighten pull-out basket with soft-closing KPTJ012 | tall unit basket

Heighten pull-out basket with soft-closing KPTJ012 | tall unit basket

• Heighten tall unit basket with soft-closing KPTJ012

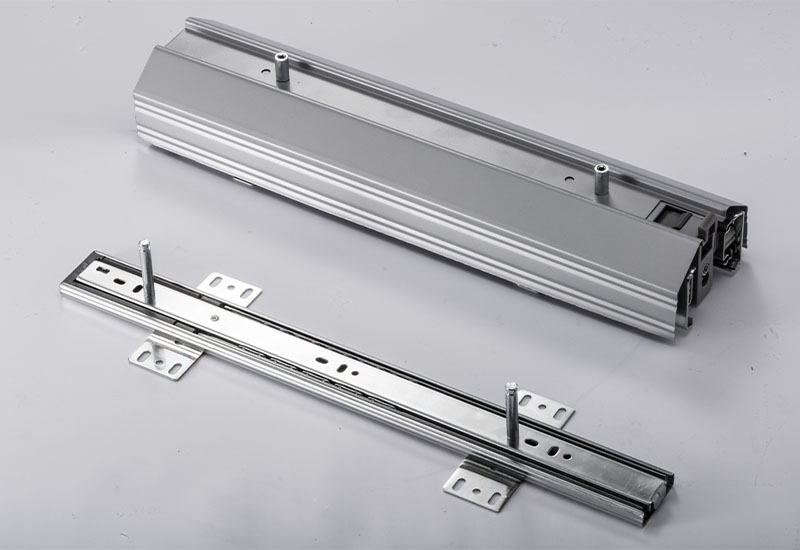

• In the carrier mechanism and top guide, used heavy-duty rail with soft-closing.
• 150mm~500mm Slim body design, make full use of the space between the cracks.
• Product length can be adjusted according to the height of the cabinet.




Tall unit basket with soft-closing KPTJ012 for kitchen tall unit cabinet.
• In the carrier mechanism and top guide, used heavy-duty rail with soft-closing.
• Carrying capacity is 80 kg max.
• Product length can be adjusted according to the height of the cabinet.
• Door can be adjustable two axes via door connections parts.

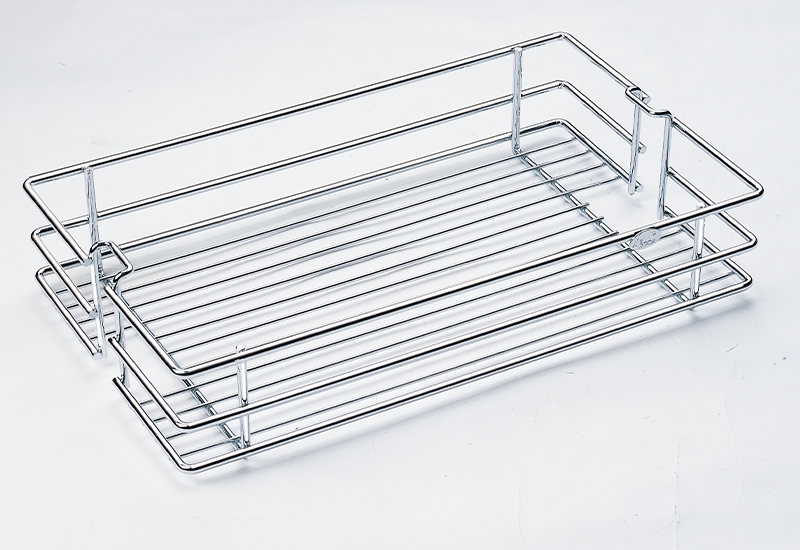

• Three different size of baskets are appropriate to the width of the cabinet.(Other sizes can be customized)

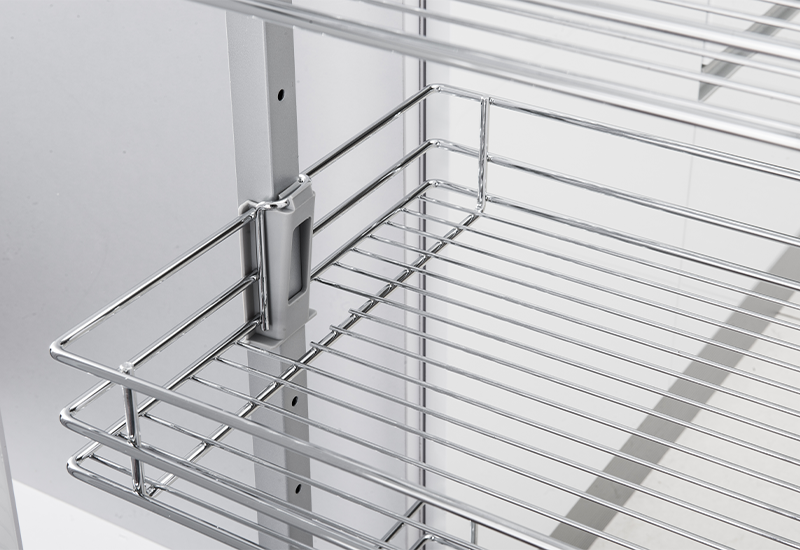

• Baskets can be fixed to desired hight of the frame with plastic hangers.
• Carrying mechanism, guide and frame are grey painted, basket frames chrome plated.
• Alternatively in wire basket/ wooden bottom basket/ glass basket available.

Name Item Cabinet Depth x Width x Height Description Material Color
Tall Unit Basket KPTJ012D-150 150mm 480 x 100 x (1850-2200) mm 6 Layers Iron Silver grey+chrome
Tall Unit Basket KPTJ012D-200 200mm 480 x 150 x (1850-2200) mm 6 Layers Iron Silver grey+chrome
Tall Unit Basket KPTJ012D-250 250mm 480 x 200 x (1850-2200) mm 6 Layers Iron Silver grey+chrome
Tall Unit Basket KPTJ012D-300 300mm 480 x 250 x (1850-2200) mm 6 Layers Iron Silver grey+chrome
Tall Unit Basket KPTJ012D 400mm 480 x 350 x (1850-2200) mm 6 Layers Iron Silver grey+chrome
Tall Unit Basket KPTJ012D-500 500mm 450 x 450 x (1850-2200) mm 6 Layers Iron Silver grey+chrome
