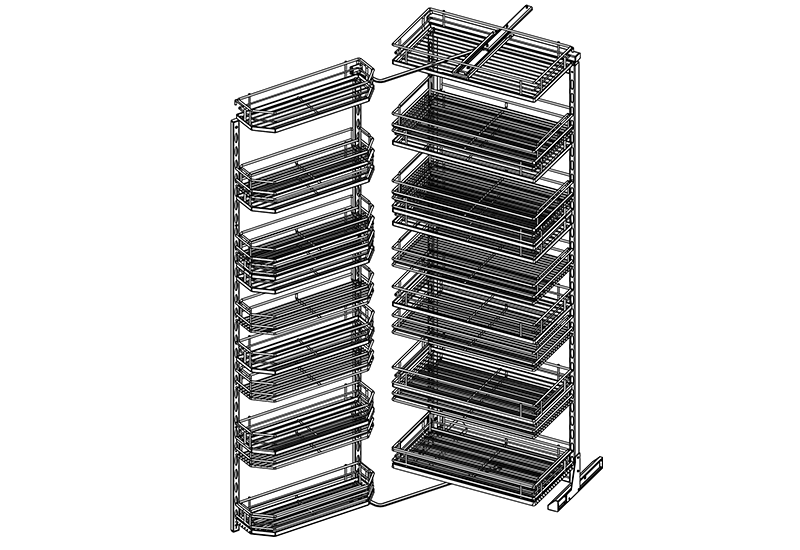

Larder unit basket with soft-closing PTJ022A/B/C/D

• Provided heavy-duty slides on the carrier mechanism and on top guide.
• Carrying capacity is 120 kg max.
• Available for hinged tall cabinets with door.




• Provided heavy-duty slides on the carrier mechanism and on top guide.
• Carrying capacity is 120 kg max.
• Available for hinged tall cabinets with door.
• Two standard sizes options: 450mm and 600mm width cabinet (other sizes can be customized).
• larder unit basket.When the door is open, back body comes to front. provides easy access to the basket.
• Baskets are placed on the holes on the frame according to the required height
• Product length can be adjusted according to the height of the cabinet.

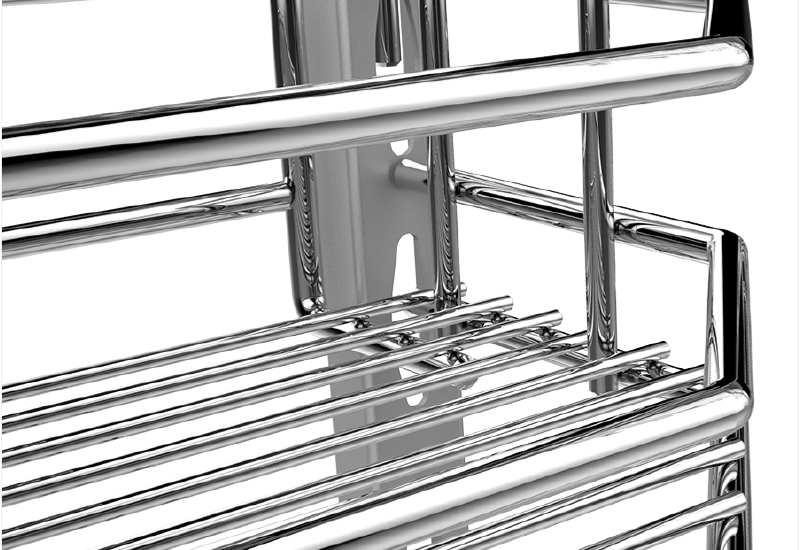

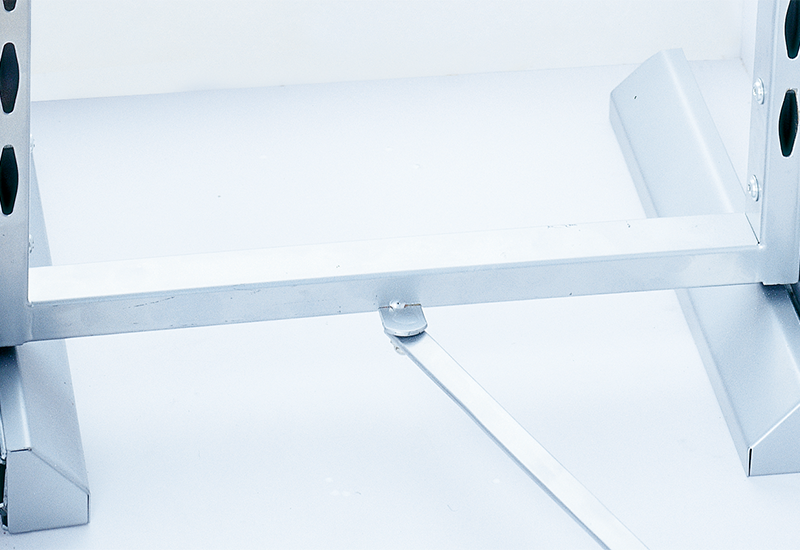

• Carrier mechanism and frame are painted silver grey, baskets are chrome plated.

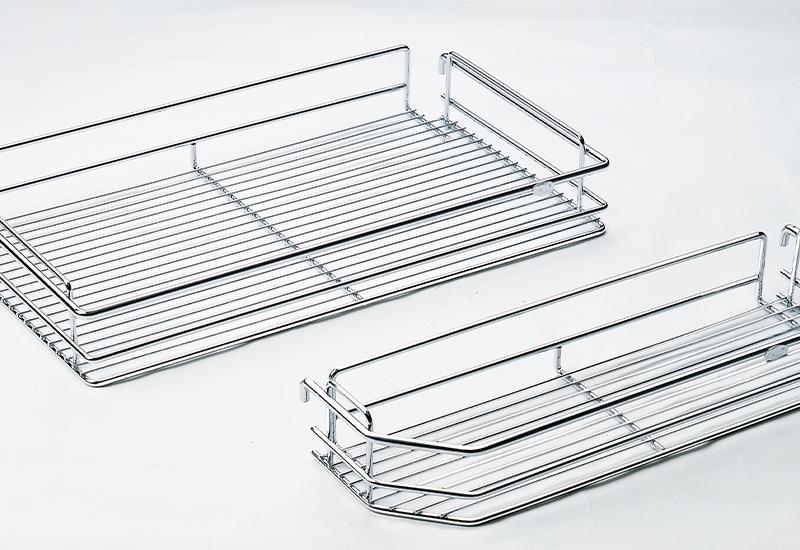

• Alternatively in wire basket/ wooden bottom basket/ glass basket available.
Name Item Cabinet Depth x Width x Height Description Material Color
 Larder Unit PTJ022A 450mm 500 x 385 x (1250-1550) mm 5 Layers Iron Silver grey+chrome
 Larder Unit PTJ022B 450mm 500 x 385 x (1650-1950) mm 6 Layers Iron Silver grey+chrome
 Larder Unit PTJ022C 450mm 500 x 385 x (1850-2150) mm 6 Layers Iron Silver grey+chrome
 Larder Unit PTJ022D 450mm 500 x 385 x (1150-1450) mm 4 Layers Iron Silver grey+chrome
 Larder Unit PTJ022A-600 600mm 500 x 535 x (1250-1550) mm 5 Layers Iron Silver grey+chrome
 Larder Unit PTJ022B-600 600mm 500 x 535 x (1650-1950) mm 6 Layers Iron Silver grey+chrome
 Larder Unit PTJ022C-600 600mm 500 x 535 x (1850-2150) mm 6 Layers Iron Silver grey+chrome
 Larder Unit PTJ022D-600 600mm 500 x 535 x (1150-1450) mm 4 Layers Iron Silver grey+chrome
